Product Details
＋

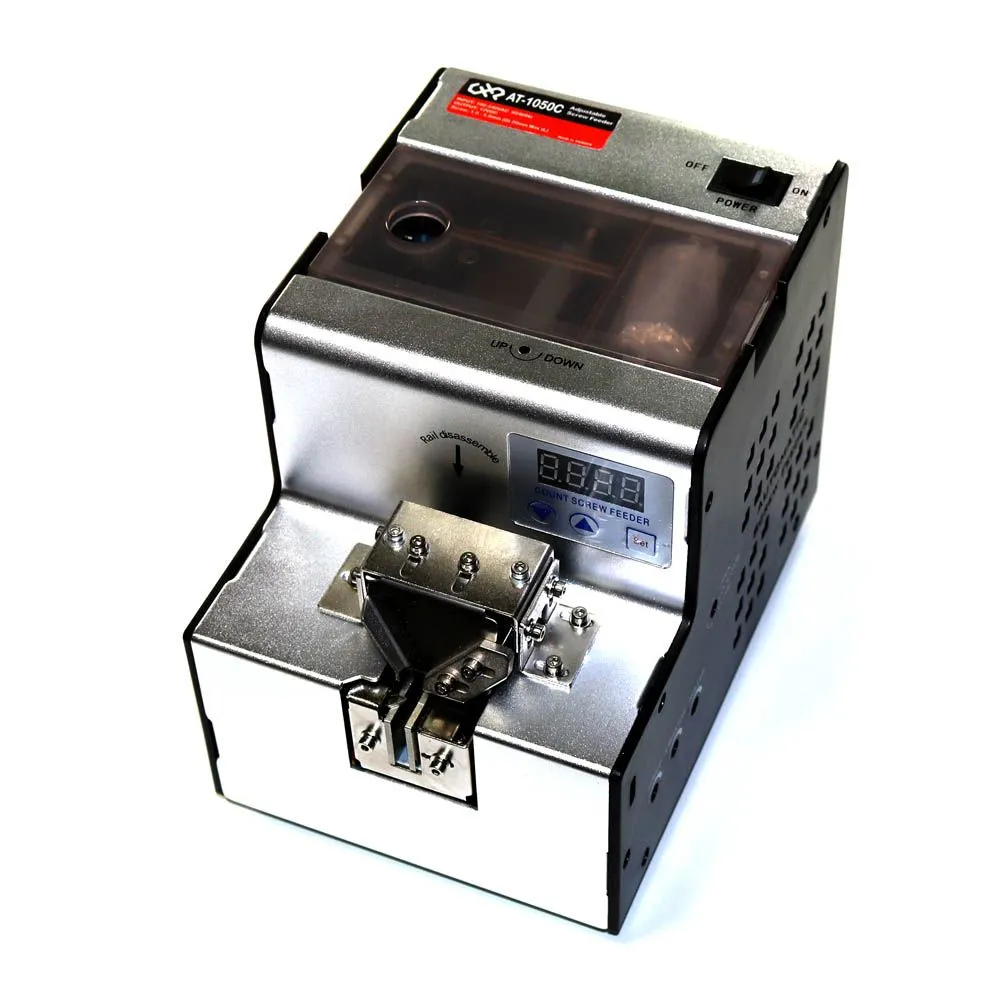

FEEDER,SCREW,M1.0-5.0,w/DIGITAL COUNTER
Specifications
| Model Name | AT-1050C |
| Part No. | AT-1050C |
| Output Speed | 2pcs/second |
| Protection/Recovery Function | Overload protection circuit, reverse power polarity prevention circuit |
| AC Adapter | Input:100 - 240VAC, 50/60Hz Output: 12VDC |
| Dimension | 185 (L) x 130(W) x 130 (H) mm |
| Weight | AT-1050: 1.8kg (4.0lbs), AT-1050C: 2.2kg (4.9lbs) |
| Screw Diameter | M1 - M5 (#000 - #10) |
| Max Screw Head Diameter | 6 mm |
| Maximum Screw Length | 20mm |
| Minimum Screw Length | Single screw: diameter x1.0 Screw with spring washer: diameter (0.5x diameter) Screw with spring and flat washers: diameter (1.1x diameter) |
| Screw Material | Ferromagnetic |
CONTENTS
| AT-1050C Screw Feeder |
| AC Adapter (AT-L40790-1) |
| Hex wrench (M2) |
| Rail Adjustment Shims |
| Alternate Stopper |
| Instruction Manual |
DIGITAL COUNTING SCREW FEEDER
